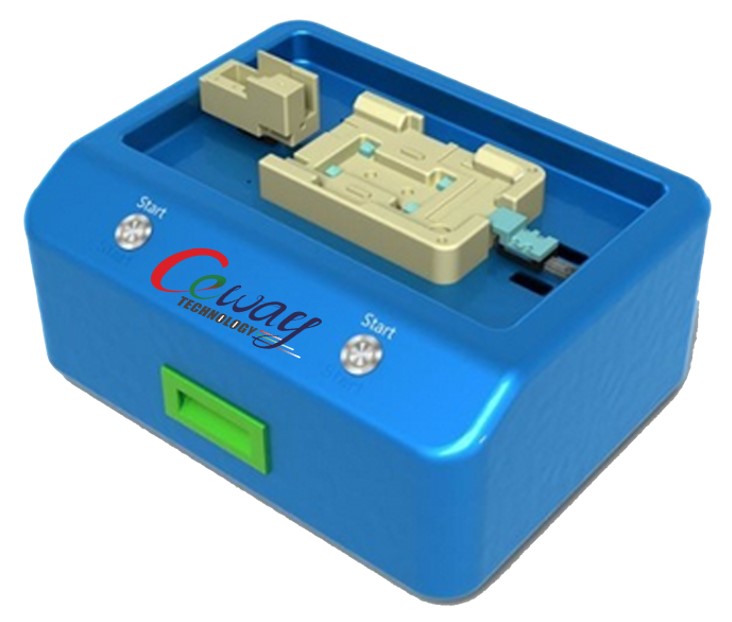

Mute Vibration Interference Testing Fixture

1. Description



Mute vibration interference testing fixture mainly used to test the motor vibration effect of mobile phone，it tests the noise sent out by mobile phone vibrate through MIC. In order to avoid environment noise，the testing fixture placed in a shielding box with no noise to carry on testing .



lHigh efficiency



lUsed four silica gel gasket to jack-up products from bottom , to protect products from scratching while testing



l High precision dimension



2. Specification

Fixture Dimension/mm	270×220×175(L×W×H) Can be adjusted according to the measured object
Electronic Box Dimension/mm	220×300×125(L×W×H) Can be adjusted according to the measured object
Product Dimension/mm	128.88×64.58×12.17(L×W×H) Can be adjusted according to the measured object
Input Power	AC100-220V 50HZ
Working Pressure	0.5MPa
