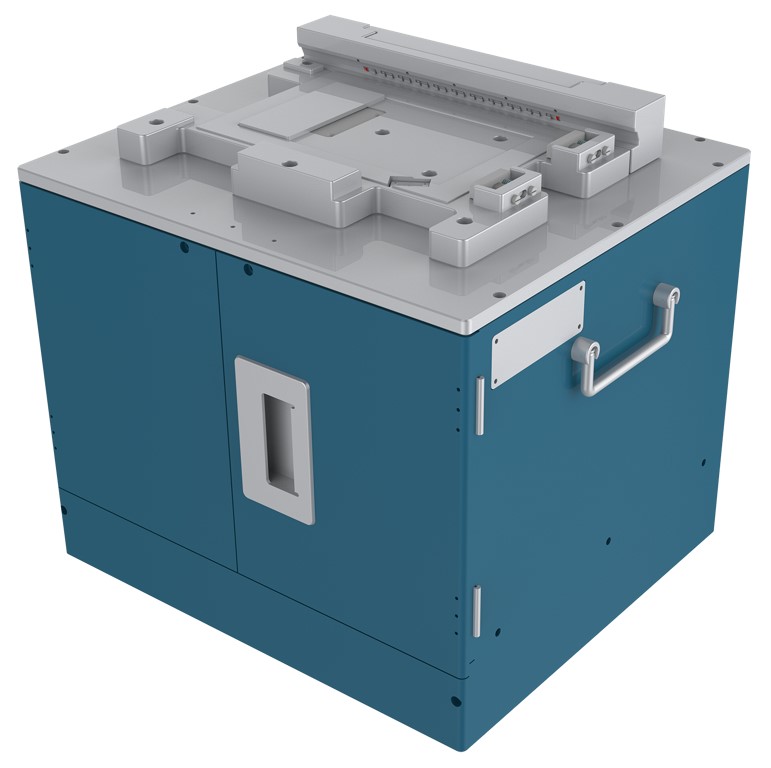

Magnet Hall Testing Fixture

1.Description



The fixture inlayed a row of hall sensor ,and the installation of sensors through three dimensional tests, in order to test magnetic field intensity of finished pad two sides installation location , and judge whether there has

equipped magnet or equipped it . The inside of fixture has movement mechanism , it drive the hall sensor of the magnet testing products , to check whether the performance of sensor is  good from different position.



2.Specification



Dimension	390×340×382mm
Input Voltage	AC100-220V 50HZ
Magnetic Field Precision	1mGs
