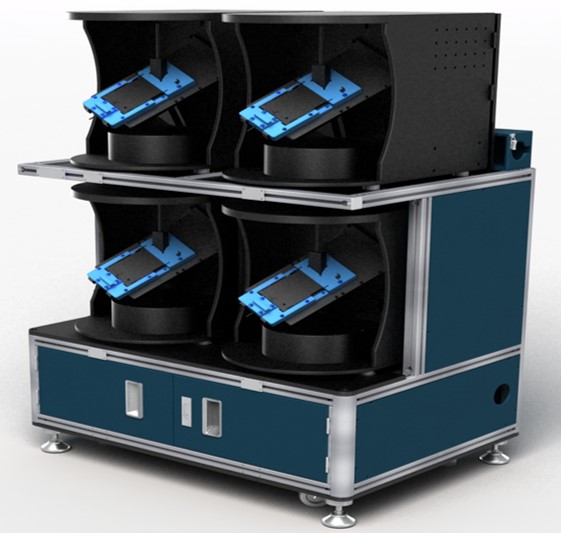

Magnetic Field Compass Testing Fixture

1.Description

• The main test fixture mobile magnetic field induction effect, test on the back flash;
• Testing area all used components made with non-magnetic material;
• A machine corresponding to multiple products ,  so the production efficiency is high ,and it’s easy to operated ；
• The cabinet and fixture can be separated , it’s convenient to carry and move;

Fixture by constant current control the stable magnetic field and the fixed direction of magnetic field lines, test the product inside the parameters of electronic compass chip performance.

Fixture internal place light illumination meter, test flash luminescence performance.



2.Specification



Dimension	621×820×1284mm
Input Voltage	AC100-220V
Magnetic Field Precision	1mGs
