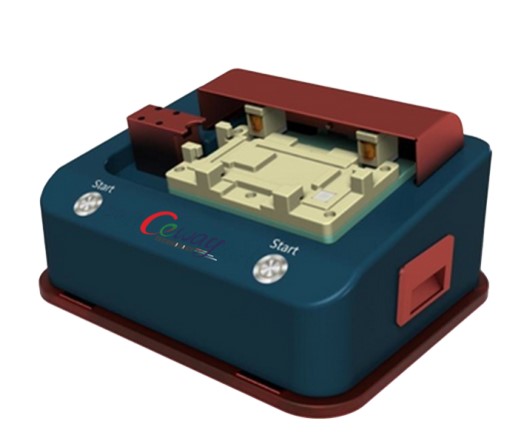

Button Testing Fixture

1.Description



Button Testing Fixture mainly used to test various button on  mobile phone /computer/tablet computer and other electronic equipment . The fixture mainly assist testing button，the motor drive indenter to press the button，to get pressure graph by pressure sensor , then the engineer and technician can analysis the problem according to the pressure graph , and correct the problem timely.



2.Specification



Fixture Dimension （L×W×H ）	210×190×120mm
Product Dimension （L×W×H ）	128×64×12mm
Input Voltage	AC100-220V 50HZ
Working Pressure	0.5Mpa
Pressure Precision	±10g
