MMI

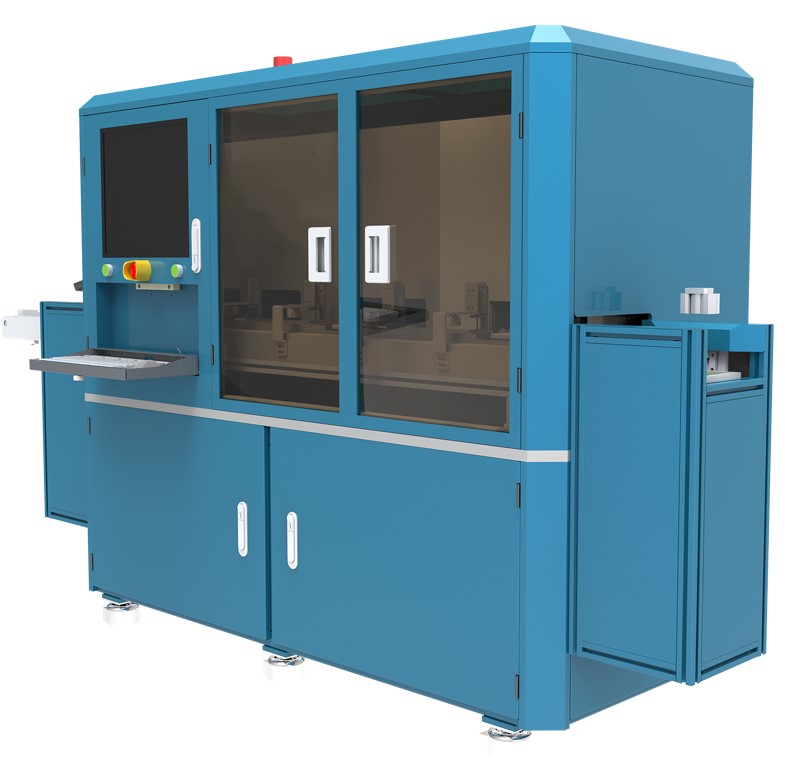

1.   Description

        Strength of load simulation test equipment for testing different scenarios damage test. Support multiple work station running at the same time, and the independent control. By changing different pressure components, can realize the rapid and continuous collision detection of different fixed load.

2. Test principle intro

 Each test is mainly composed of USB cable, camera, motion mechanism, PC computer, mobile phone terminal and PCB under a machine and accessories, in coordination;

A: PC through USB cable to the phone with A machine to send instructions for each sensor data, electric machine, vibration EKS, confirm whether OK.

B: the camera by image analysis can know flash light, backlighting, cameras, breathing lamp, LCD is normal;

C: motion mechanism with cable and PCB can finish touch sensors, the volume button, power button, audio, SIM Card, OTG, bluetooth, etc;

3.Specification



Dimension(mm)（L×W×H）	640×720×1686mm
input voltage	AC100-220V
working air pressure	0.5MPa
test time	60s
Software working	Windows
